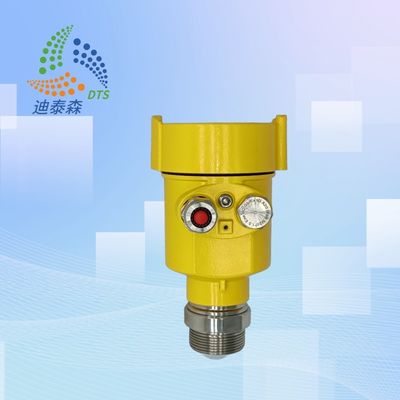

CNEX Radar Type Water Level Sensor 80GHz Resolution 1mm Industrial Grade

Place of Origin China
Brand Name DTS
Certification CNEX
Model Number DTS-RD-82
Minimum Order Quantity 1
Packaging Details Carton
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 10000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Grade Industrial Customized Support OEM, ODM
Model DTS-RD-82 Application Liquid/Solid
Measuring Range 30m Frequency 80GHz
Accuracy ±2mm Resolution 1mm
Process Pressure (-0.1~0.1)MPa Process Temperature -40℃~+120℃
High Light

Radar Type Water Level Sensor 80GHz


Radar Type Water Level Sensor 1mm


CNEX Water Level Sensor Radar

Leave a Message
Product Description

Radar Liquid Level Transmitter Sensor Meter Gauge High Precision 80GHz Resolution 1mm Factory Price

Product Description:

Radar level meter works with high-frequency radar pulses which are emitted by an antenna and reflected from the medium surface due to a change of the dc value (relative dielectric constant). The Time-of-Flight of the reflected radar pulse is directly proportional to the distance traveled. If the tank geometry is known, the level can be calculated from this variable.


The Non Contact Radar Level Transmitter can realize continuous level measurement of solids and liquids. It can ensure high precision and high stability of measurement under various working conditions. Easy to install, simple to operate and less maintenance, it is an ideal solution for level control in the production process.



  • 1. The measurement accuracy of millimeter-wave radar can reach ± 1mm, and the measurement blind area is 50mm.
    2. Smaller antenna size, to meet the more working conditions for measurement.
    3.A variety of lens antennas, 3 emission Angle, more concentrated energy, stronger echo signal, under the same industrial and mining conditions, with higher reliability than other radar products.
    4. It is more penetrating and can be used normally in the case of adhesion and condensation.
    5.The dynamic signal range is larger and is more stable for measurements of low permittivity media.
    6.Multiple measurement modes, and the radar reaction time is less than 1S in the rapid measurement mode.

Technical Parameters:

Model DTS-RD-82
Application Liquid/Solid
Measuring Range 30m
Frequency 80GHz
Accuracy ±2mm
Resolution 1mm
Process Temperature -40℃~+120℃
Process pressure (-0.1~0.1)MPa

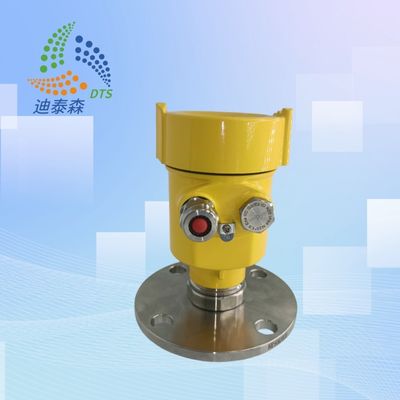

Process Connection Thread G1½; Flange from DN50
Protection Class IP67
Signal output 4…20mA/HART; RS485/MODBUS
Connection Bluetooth/NB-iot/4G
Material Stainless Steel+PTFE
Power Supply Two Wires DC24±6V; Four Wires AC220V


The 80G Radar Level Meter is an advanced microwave level sensor that has a measuring range of 0.15~30m and is equipped with a microwave level sensor. It uses a unique 80GHz measuring frequency and radar measuring principle to precisely measure the level of various liquids and solids in tanks or other containers. It is suitable for a wide range of applications such as monitoring water levels in reservoirs and rivers, measuring the height of oil in tanks, and detecting the level of materials in silos. This level meter is an ideal choice for industrial operations that require accurate and reliable measuring of liquid and solid levels.


Packing and Shipping:

The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:

Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.

The package is shipped by air freight, usually with a carrier such as DHL or FedEx.
