Portable PE Gas Pipe Locator Gas Pipeline Locator 10m Depth 5000m Distance

Place of Origin China
Brand Name DTS
Model Number GPPL3000
Minimum Order Quantity 1
Packaging Details Carton
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 1000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Customized Support OEM, ODM Application PE Gas Pipeline Location
Data Storage Yes Detect Distance 5000m
Detect Depth 10m Grade Industrial
High Light

PE Gas Pipe Locator

,

Gas Pipe Locator 10m

,

Gas Pipeline Locator 5000m

Leave a Message
Product Description

Portable PE Gas Pipe locator 10m Depth 5000m Distance

Product Description:

The intelligent sonic gas PE pipeline locator GPPL3000 is a technological product specially developed for the positioning of gas PE pipelines. Using military-grade high-sensitivity vibration sensors, combined with a specific frequency vibration signal demodulation algorithm, based on the propagation characteristics of sound waves in the gas pipeline, the sound wave signal sent by the instrument is received and tracked, so as to accurately locate the position, depth, direction and connection of the gas PE pipeline under test. It solves the worldwide problem that gas PE pipelines are difficult to detect, and is suitable for gas companies and other users to locate and detect buried gas PE pipelines.

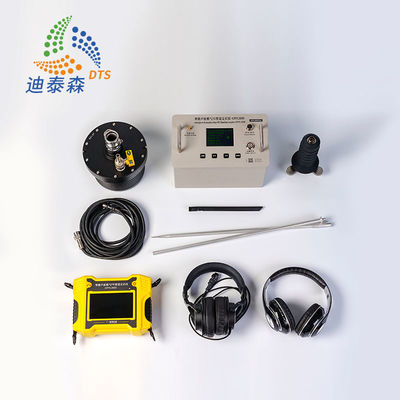

Portable PE Gas Pipe Locator Gas Pipeline Locator 10m Depth 5000m Distance 0

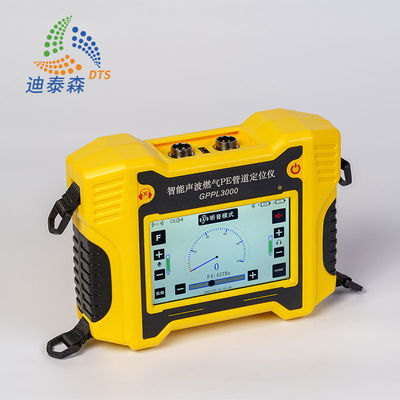

Portable PE Gas Pipe Locator Gas Pipeline Locator 10m Depth 5000m Distance 1



Features:

  • 1. Optimize the software system and internal structure, the detection depth can reach 10 meters
    2. Accurate positioning, the error is less than 15 cm
    3. Color touch high-definition large screen, still clearly visible under strong light
    4. Two modes of listening mode + detection mode, multi-dimensional accurate positioning.
    5. Using Lora spread spectrum wireless technology, the receiver is remotely synchronized with the transmitter, and the operation is simple to use.
    6. Dual output of limited headset and blue tooth headset, suitable for use in various scenarios
    7. Military-grade high-quality, sturdy and durable. Collected in a project box, easy to carry


Technical Parameters:



Transmitter  Data
Model GPPL3000
Application PE Gas Pipeline Location
Grade Industrial
Display Touch colour LCD screen, clearly visible under strong light
Frequency (227/327/427/527/627/700Hz)frequency adjustable
Power output (5W/20W/50W/100W)
Audio output Constant frequency; Pulse; Variable frequency
Communication Lora spread spectrum wireless technology
Battery Rechargeable lithum battery
Working time More than 14 hours
Charging time 4.5 hours
Humidity 95%
Working temperature -30℃--60℃
Receiver Data
Receiving frequency 200 Hz -700Hz predict set 6 frequency(227/327/427/527/627/700Hz)
Signal amplification 1-20 times
Location mode listening mode + detection mode
Display Touch colour LCD screen, clearly visible under strong light
Detect Depth 10m
Detect Distance 5000m
Battery  Rechargeable lithum battery
Working time More than 16 hours
Charging time 5 hours
Humidity 95%
Working temperature -30℃--60℃
Data Storge System memory:1GB; Flash memory:8GB; Max:128GB


Applications:

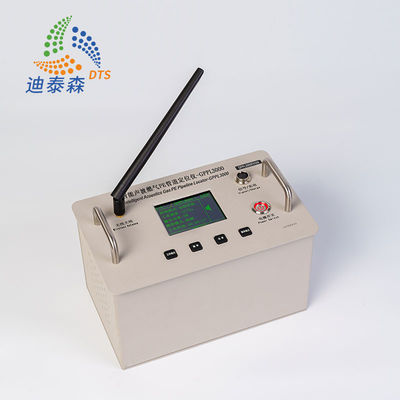

Portable PE Gas Pipe Locator Gas Pipeline Locator 10m Depth 5000m Distance 2

Packing and Shipping:

Portable PE Gas Pipe Locator Gas Pipeline Locator 10m Depth 5000m Distance 3
